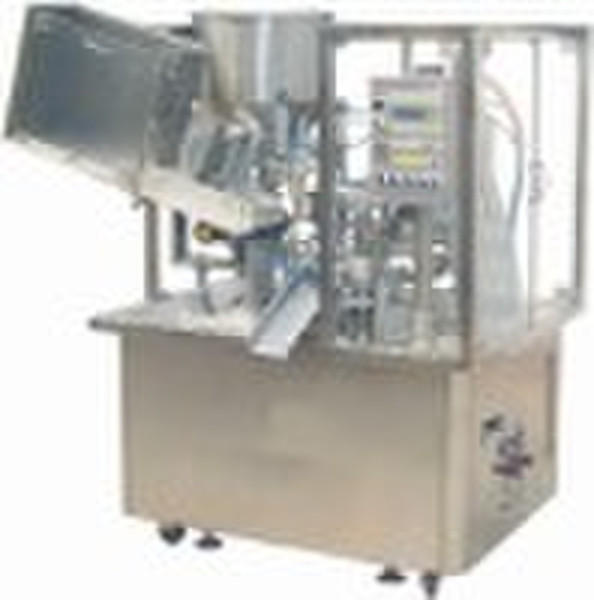

Auto Filling &Sealing Machine

This series machines are applicable for various types of aluminum plasticand plastic tubes which can automatically fill , seal , stamp batch numbers ,and exit tubes . It is used in the industrial of daily cosmetic , medicines ,food and so on .It will not damage the surface tissue of soft tube , high speed , highefficiency , and the sealed end is firm and good-looking . Stainless steelmaterial is adopted for the part contacting with sruffs to endure erosion fromacid and alkali . All the conduits adopt the method of quick bar clasp , whichis convenient , quick , and handy to load and unload . Stuff valve is easy torinse thoroughly by using rotary valve , which adopts accuracy cam indexingmechanism with precise and smooth positioning . The user can adjust speed withthe frequency conversion type speed control to the rotating engine . It adopts inner heating , by using LEISTER air-heating imported formSwitzerland . It is applicable to seal plastic tubes . Main Technical Parameters ModelWXFL-50F Power Supply220VAC/50Hz Air Exhaustion3.3KW Filling Capacity0.3-0.5m³/min Air supply0.6MPa Filling CapacityI 5-25ml/ II 15-150ml/ III 30-200ml(adjustable) Tube DiameterΦ16-40mm(adjustable) Tube Length70-200mm Measuring Precision<1.5% Production Ability30-50pcs/min Size1000×800×1600mm Weight300Kg
